Aluminium Double Hung Windows

Aluminium Double Hung Windows
Aluminium Double Hung Windows

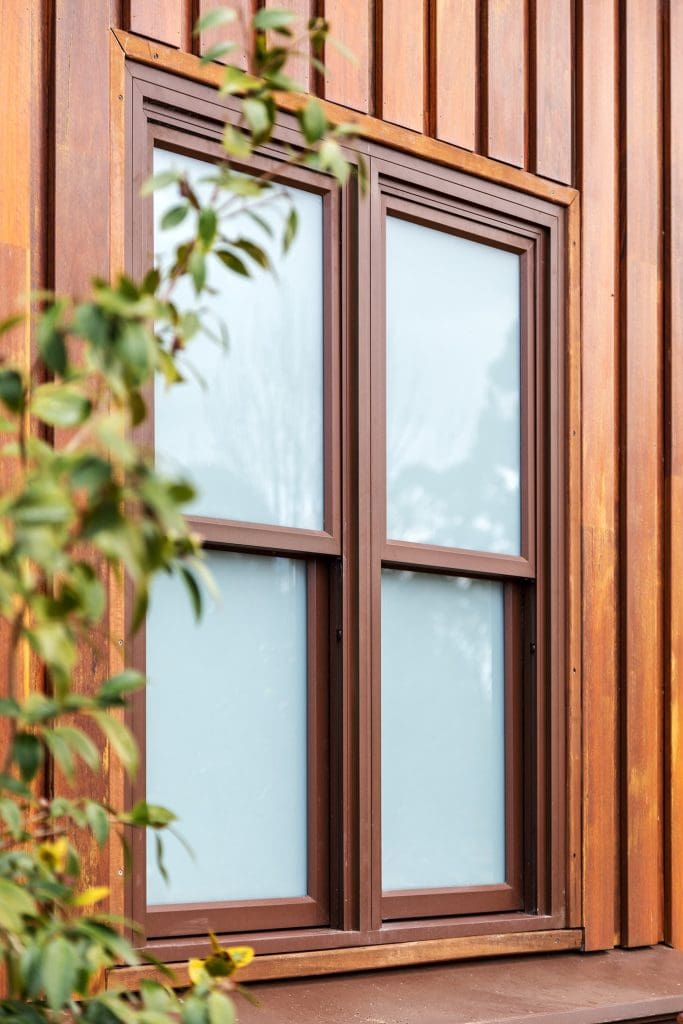

The Magnum double hung Aluminium window lends elegance to traditional or contemporary homes.

Mirroring traditional solid timber windows in appearance, the Magnum double hung window offers classic style with the functional benefits of aluminium.

Some of the practical features of these windows are that they do not protrude over decks or walkways and are a superb window for ventilation. Sashes will accommodate 20mm double glazing and pivot inwards for convenient cleaning from the inside of the building. Excellent weather performance, strength, sound reduction and security are all hallmarks of Magnum double hung products.

The window has been tested for compliance with the relevant Australian Standards achieving a high water resistance of 300Pa and sashes can be secured with the Vantage custom key or non-key locking cam handle. Magnum double hung windows can be fitted with external flyscreens within the frame line and sashes and sidelights will accept a variety of glass thicknesses from 4mm single panes to 20mm insulating glass units.

The Magnum double hung Aluminium window is compatible with the high performance Magnum sliding, awning and casement windows. A large range of snap couplers allow these windows to be joined at 90°, 135° and 180° without unsightly rivets or screws. Standard 84 powdercoat finishes available as well as the high performance Ultriva powdercoat finish. Colour matched hardware is available on request.

*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
Maximum Frame Height* 1009mm
Maximum Panel Width* 1090mm
Maximum Glass Thickness ≤ 20mm
SHGC Range 0.2 – 0.57
Uw Range 3.7 – 6.5


The experience and expertise of our dedicated, long serving team of professionals ensures that we can provide the highest levels of quality, durability and service.

Our goal is to continue to develop products that exceed the Australian Standards for performance, security and safety.

We pride ourselves on being one of Western Australia’s largest manufacturers of factory glazed windows and doors, and Havengard® screening systems compliant for high wind zone applications.
